MIT engineers have successfully developed a groundbreaking technique for growing and peeling ultrathin layers of electronic material, opening up a new realm of possibilities for electronic devices. This innovative method has the potential to revolutionize the field by enabling the creation of ultrathin wearable sensors, flexible transistors, computing elements, and highly sensitive imaging devices.

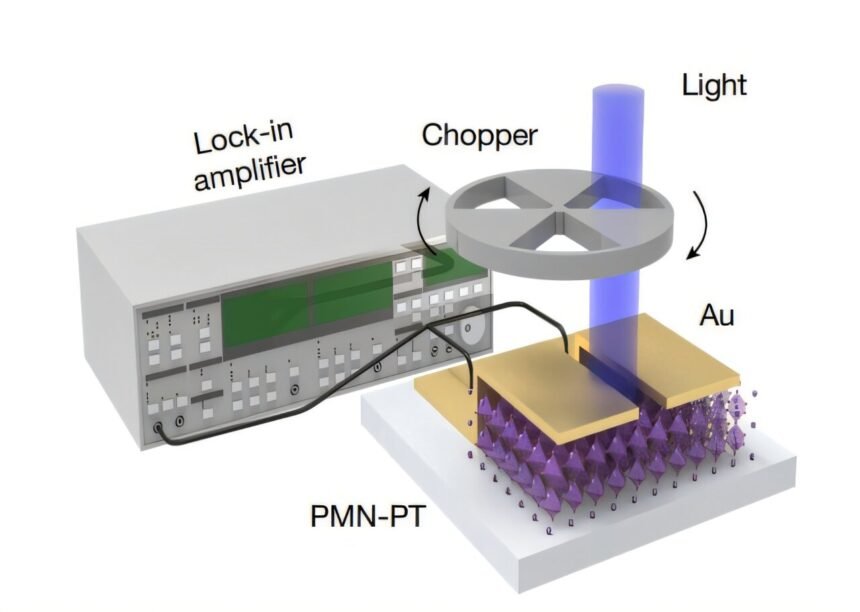

In a recent demonstration, the team focused on fabricating a thin membrane of pyroelectric material, a type of heat-sensing material that generates an electric current in response to temperature changes. The team’s new technique allowed them to create the thinnest pyroelectric membrane to date, measuring a mere 10 nanometers in thickness. This ultra-thin film exhibited exceptional sensitivity to heat and radiation across the far-infrared spectrum.
The implications of this development are vast, with potential applications ranging from lightweight and portable far-infrared sensing devices for night-vision glasses to enhancing autonomous driving capabilities in challenging weather conditions like fog. Unlike current far-IR sensors that rely on bulky cooling elements, the new pyroelectric thin film requires no cooling and offers heightened sensitivity to even the smallest temperature changes.
One of the key advantages of this film is its reduced weight and cost, making it easy to integrate into various devices. For instance, the film could be directly incorporated into lightweight night-vision glasses, offering a more comfortable and efficient alternative to existing technologies.
Moreover, the applications of this heat-sensing film extend beyond night-vision devices. It holds promise for environmental and biological sensing applications, as well as imaging astrophysical phenomena emitting far-infrared radiation.
The researchers also discovered that their lift-off technique can be applied to other high-performance semiconducting films, paving the way for further advancements in electronic device manufacturing. The study, published in the prestigious journal Nature, highlights the collaborative efforts of researchers from MIT and other institutions.
By exploring innovative methods like “remote epitaxy,” the team has been able to grow, peel, and stack semiconducting elements to create ultrathin electronic thin-film membranes. This approach involves growing semiconducting materials on a single-crystalline substrate with a thin layer of graphene in between, allowing for easy peeling and transfer onto flexible electronic devices.
The study also delves into the unique properties of the pyroelectric film, particularly its lead content, which contributes to its smooth and intact peeling. By understanding the chemical structure of the material, the researchers were able to fabricate multiple ultrathin films of pyroelectric material, each exhibiting exceptional sensitivity to far-infrared radiation.
The potential applications of this technology are vast, ranging from lightweight night-vision goggles to gas sensors for environmental monitoring. The team is actively working towards integrating the pyroelectric films into functional night-vision systems, envisioning a future where high-performance night-vision devices are compact, lightweight, and sensitive across the entire infrared spectrum.
In conclusion, the development of this ultrathin electronic skin has the potential to transform the electronic device landscape, offering a new frontier of possibilities for wearable technology, sensing applications, and imaging devices. The collaborative efforts of researchers from MIT and other institutions have paved the way for groundbreaking advancements in electronic material fabrication and device integration.
