Researchers at North Carolina State University have developed a groundbreaking polymer structure that mimics a Chinese lantern, capable of transforming into over a dozen different three-dimensional shapes with just a simple twist or compression. This shape-shifting ability can be remotely controlled using a magnetic field, making it incredibly versatile for a wide range of applications.
The polymer “Chinese lantern” was the brainchild of a team of researchers led by Jie Yin, a professor of mechanical and aerospace engineering at NC State. The structure is created by cutting a polymer sheet into a diamond-shaped parallelogram and then making parallel cuts across the center, forming a series of ribbons connected by solid strips at the top and bottom. By connecting the ends of these strips, the polymer sheet can be manipulated into a spherical lantern shape.
What makes this structure truly unique is its bistable nature – it can hold two stable forms, with the lantern shape being one of them. This inherent stability allows the structure to seamlessly transition between different shapes, opening up a world of possibilities for its use in various fields.
The research paper detailing this innovative technology, titled “Reprogrammable snapping morphogenesis in freestanding ribbon-cluster meta-units via stored elastic energy,” has been published in the prestigious journal Nature Materials. The paper was co-authored by Caizhi Zhou and Haitao Qing, both Ph.D. students at NC State, as well as Yinding Chi, a former Ph.D. student at NC State who is now a postdoctoral researcher at the University of Pennsylvania.
The potential applications of this polymer Chinese lantern are vast, ranging from adaptive structures in engineering and architecture to biomedical devices and even soft robotics. The ability to remotely control the shape of the structure using a magnetic field opens up new avenues for dynamic and responsive materials design.
In a world where innovation is key, this polymer Chinese lantern represents a significant step forward in the field of shape-shifting materials. With its rapid transformation capabilities and remote controllability, it has the potential to revolutionize how we approach design and engineering in the future. When you compress a structure from the top, it may seem like a simple act. However, what if I told you that this action could lead to a mesmerizing transformation? Imagine a lantern, a symbol of illumination and hope, suddenly morphing into a spinning top, defying the laws of physics. This is exactly what researchers have discovered in a groundbreaking study.
The process begins with a simple polymer sheet cut into a diamond-like parallelogram shape. By adding parallel lines across the center of the sheet, a row of identical ribbons is formed, connected by solid strips at the top and bottom. When the left and right ends of these strips are joined, the structure takes on the appearance of a Chinese lantern. But this is just the beginning.

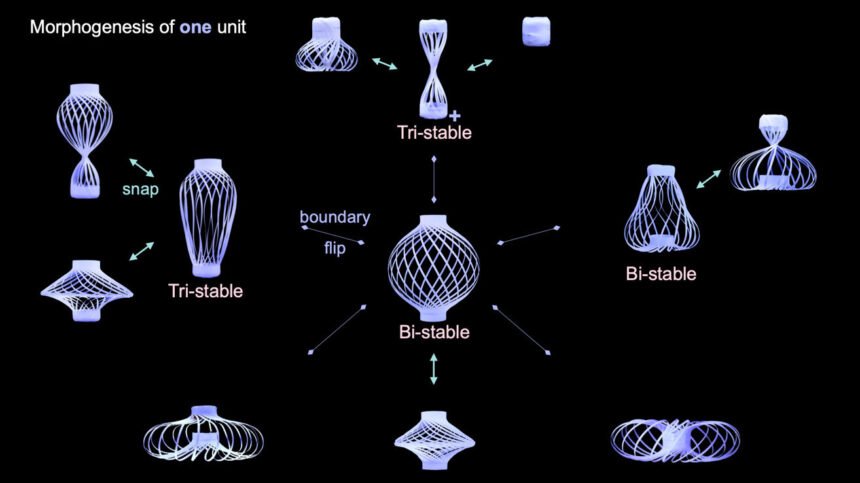

Through a series of twists, folds, and compressions, the lantern can be manipulated into a multitude of shapes. Each variation is multistable, meaning it can transition between different stable states depending on the applied forces. Some shapes can toggle between two states, while others have up to four stable configurations, activated by various combinations of compression and twisting.
To further enhance this shape-shifting ability, a thin magnetic film is attached to the bottom strip of the structure. This allows for remote control of compression and twisting using a magnetic field. The researchers demonstrated the practical applications of these transformations, including a noninvasive gripper for handling delicate objects, a water flow control filter, and a collapsible tube opener.
A key aspect of this study is the development of a mathematical model that predicts the behavior of the structure based on different angles and energy storage. By understanding how these factors influence the shape and energy release, researchers can precisely program the desired outcome for specific applications.
Looking ahead, the potential for these shape-shifting lantern units is vast. They can be assembled into intricate 2D and 3D architectures for use in mechanical metamaterials and robotics. The ability to transform between stable states with precision and control opens up a world of possibilities for innovative designs and functional applications.
In essence, what may appear as a simple lantern at first glance is actually a marvel of engineering and creativity. The fusion of art and science in this study has unlocked a new realm of possibilities for shape-morphing structures, paving the way for future advancements in technology and design.
