Advancing Semiconductor Manufacturing: Atomic-Level Hafnium Oxide Etching Using Halogen-Free Plasma Technology

The Promise of Hafnium Oxide in Semiconductor Technology

Hafnium oxide (HfO₂) has garnered significant attention as a promising material for ultrathin semiconductors and other microelectronic devices. The strong ionic bond between hafnium and oxygen atoms in HfO₂ gives it a high dielectric constant, superior thermal stability, and a wide band gap.

These properties are crucial for maintaining performance even at the atomic scale. However, they also present challenges when it comes to achieving highly precise and smooth etching of HfO₂ films.

Breaking New Ground in Atomic-Level Etching

A recent collaborative effort between researchers from Japan and Taiwan has led to a significant advancement in the etching of HfO₂ films. The team successfully etched HfO₂ films with atomic-level precision, smoothness, and uniformity without the use of halogen-based gases, which are commonly used in traditional etching methods but pose environmental and health risks.

Published in Small Science, this achievement marks a milestone in sustainable manufacturing practices within the semiconductor industry.

Innovative Etching Methodology

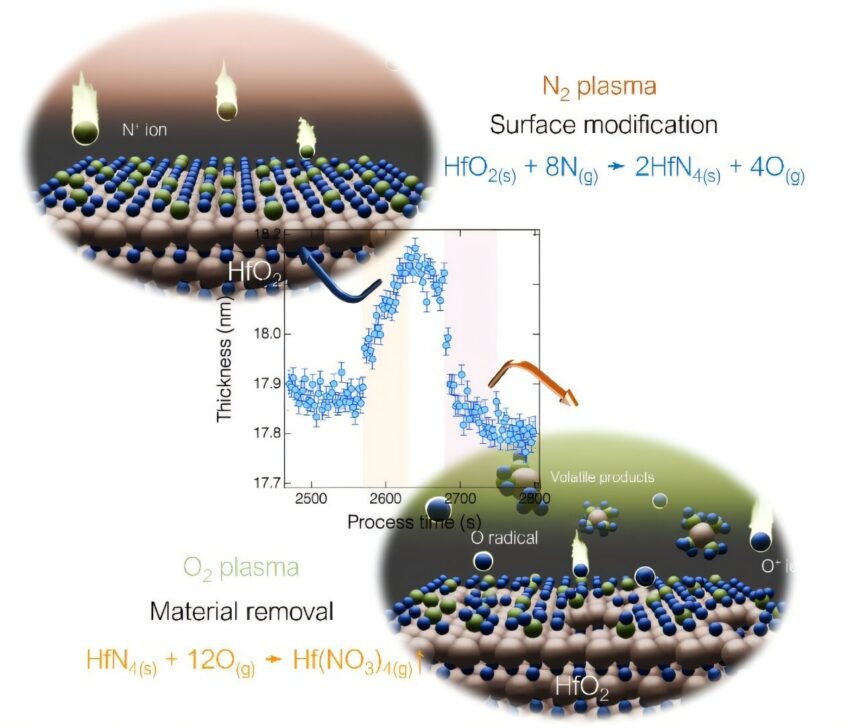

The researchers employed a novel approach to etching HfO₂ films, utilizing a low-pressure, high-density plasma generation device to irradiate the films with N₂ and O₂ plasmas alternately. This method allowed for precise control over the etching process, resulting in smooth and uniform surfaces with consistent etched depths.

By eliminating the use of halogen-based gases and optimizing the etching process, the team achieved subatomic-level precision while maintaining environmental sustainability in semiconductor manufacturing.

Conclusion

This groundbreaking research not only advances the field of semiconductor technology but also sets a new standard for environmentally conscious manufacturing practices. The successful atomic-level etching of HfO₂ films opens up new possibilities for the development of next-generation semiconductor devices, paving the way for a cleaner and more efficient industry.
